Visual rotating window for machine tools

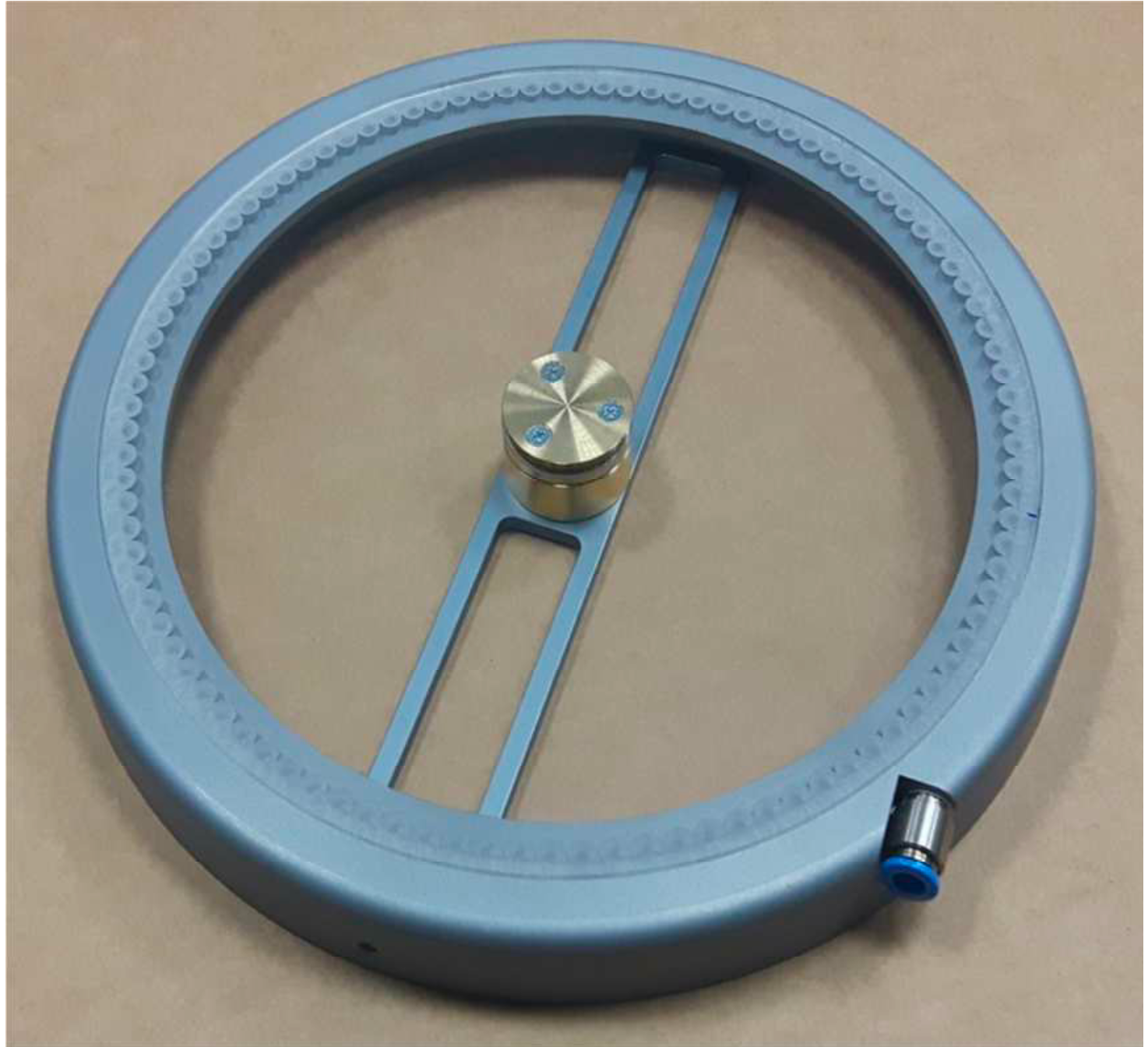

Pneumatic Rotary Window Ø250 mm

The pneumatic rotary window with transparent screen is the ideal solution for ensuring perfect visibility inside CNC machine tools during operation.
Thanks to its compressed air system, it keeps the glass free from emulsion, chips, and coolant splashes, allowing for visual inspection in total safety.

Main features

• Disc diameter: 250 mm

• Total thickness: 25 mm

• Materials: treated aluminum body, rotating disc in replaceable scratch-resistant Lexan

• Operation: via compressed air, no electric motor

• Quick installation using powerful adhesive (included)

• Made in Italy, precision construction with CNC-machined components

How it works

The disc rotates thanks to a tangential hole that expels compressed air, removing residue and ensuring a consistently clear view.
The rotation speed is adjusted by varying the supply air pressure, depending on the amount of coolant present on the window.

Advantages

• Maximum visibility during machining

• Direct monitoring of movements to avoid collisions

• No complex maintenance or electrical wiring

• Can be installed on any CNC or traditional machine with glass or polycarbonate guards

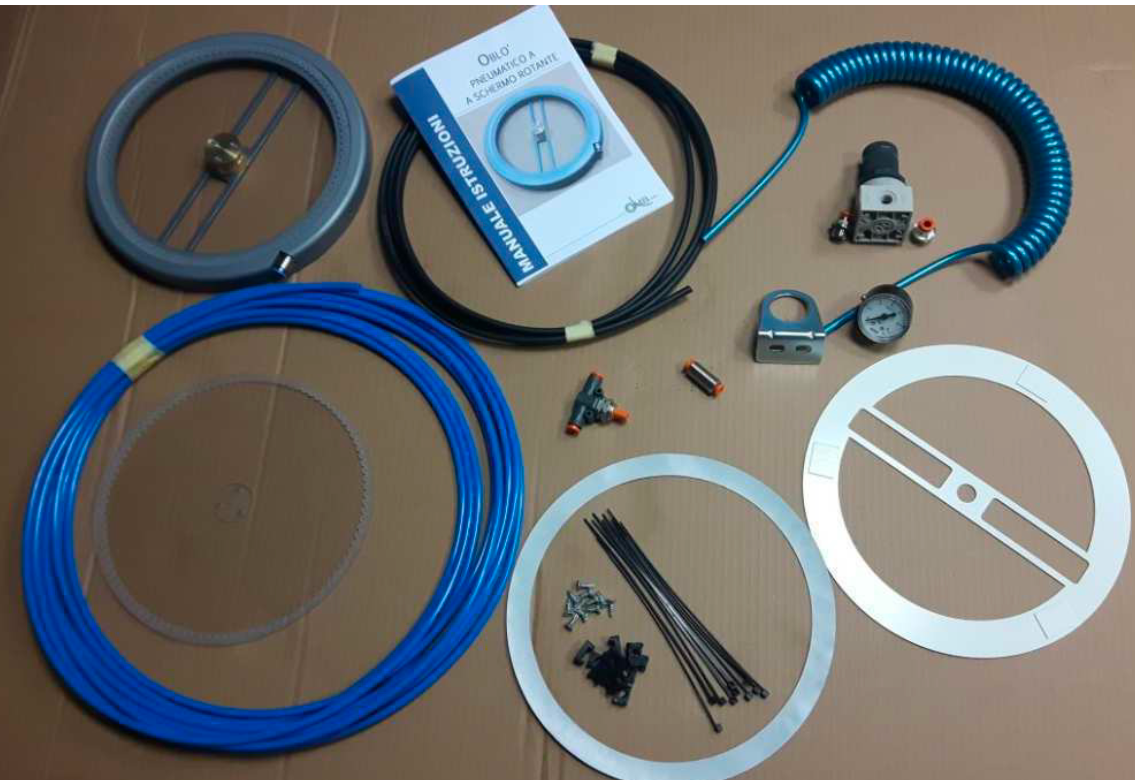

Full equipment

• Window with rotating disc and adhesive

• On/off valve and pressure regulator with gauge

• Rilsan tubing and spiral (total 16 m)

• Fittings, clamps, and fastening screws

• Spare screen and double-sided adhesive

• Positioning template

• User, assembly, and cleaning manual
